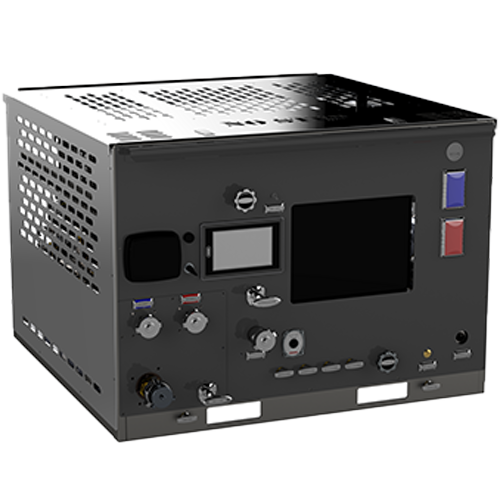

Our slide-in, portable modular compressed air foam 90-45-ECL unit is designed and constructed to simultaneously discharge water, foam solution or compressed air foam, developing 90 GPM of water at 100 PSIg (340 L/min. @ 6.9 bar) and 45 CFM of air at 100 PSIg (1.2 m3/min @ 6.9 bar). The 90-45-ECL also features compressed air for pneumatic tools and can pump water or air independently.
| 90-45-ECL WATER PERFORMANCE | ||||||
|---|---|---|---|---|---|---|
| GPM | l/min | l/sec | PSI | bar | kPa | MPa |
| 90 | 340 | 5.67 | 100 | 6.9 | 690 | 0.69 |
| 50 | 189 | 3.1 | 150 | 10 | 1000 | 1.0 |
| 90-45-ECL AIR PERFORMANCE | |||||
|---|---|---|---|---|---|
| CFM | M3/Min | PSI | Bar | kPa | MPa |
| 45 | 1.2 | 100 | 6.9 | 690 | 0.69 |
| SIMULTANEOUS FLOWS | |||||
|---|---|---|---|---|---|
| 90 GPM and 45 CFM @ 100 PSI (340 l/min and 1.2 M3/Min @ 6.9 bar) | |||||
| 40 GPM and 20 CFM @ 125 PSI (150 l/min and .56 M3/Min @ 8.6 bar) |
