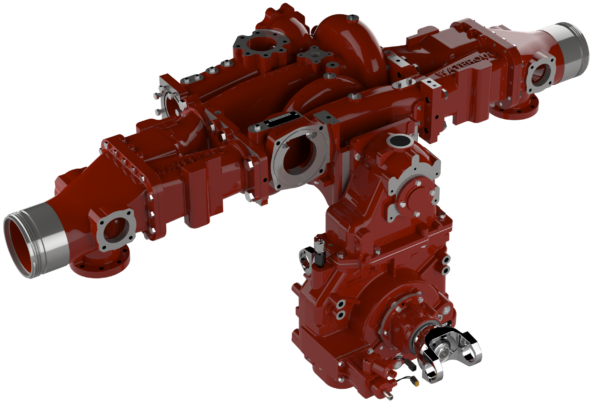

The low profile split-shaft two-stage series/parallel pump with ball-type transfer valve allows you to switch from pressure to volume smoothly & easily.

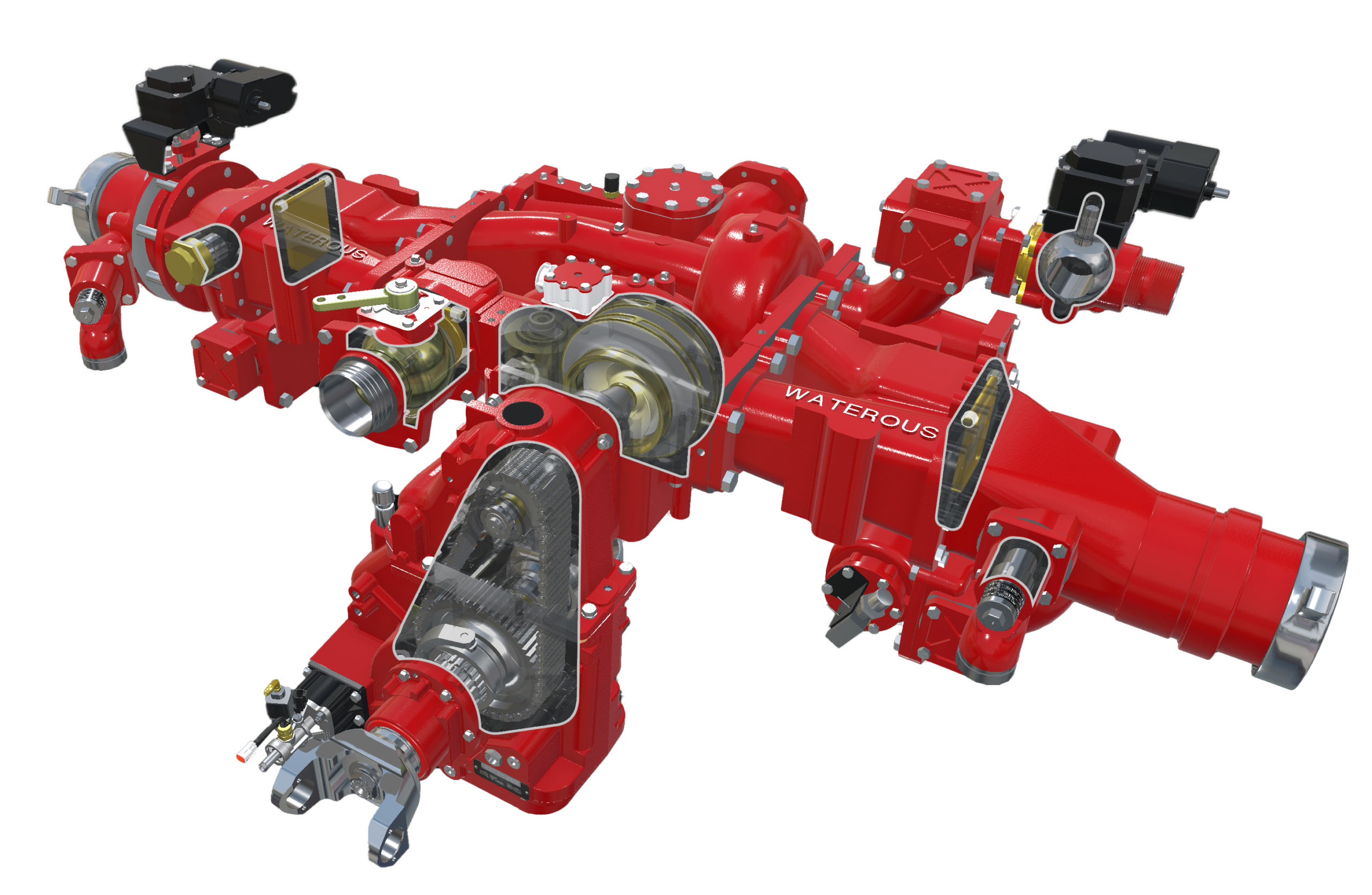

The CM/CMU Split-Shaft model is equipped with a chain-driven C22 Transmission. The C22 Transmission provides the best In-Class power transfer.The silent chain-drive provides no gear whining, provides positive shifting and requires less horsepower that will enhance the efficiency of the apparatus.
| CM FLOW | ||
|---|---|---|
| GPM | l/min | l/sec |
| 750, 1000, 1250 | 2839, 3785, 4732 | 47, 63, 78 |
| CM PRESSURE | |||
|---|---|---|---|
| PSI | Bar | kPa | MPa |
| 150 | 10 | 1000 | 1.0 |
| CMU FLOW | ||
|---|---|---|
| GPM | l/min | l/sec |
| 1500, 1750, 2000, 2250 | 5678, 6624, 7570, 8517 | 94, 110, 126, 142 |
| CMU PRESSURE | |||
|---|---|---|---|
| PSI | Bar | kPa | MPa |
| 150 | 10 | 1000 | 1.0 |
When you purchase Waterous equipment, not only do you get quality products, you get quality service. Our expert service technicians are the best in the business and they are always happy to answer any service questions you might have. The numbers for our service and training specialists are listed below for your convenience. If you have a general service question please call our main number and our staff will kindly direct you to the appropriate department.
